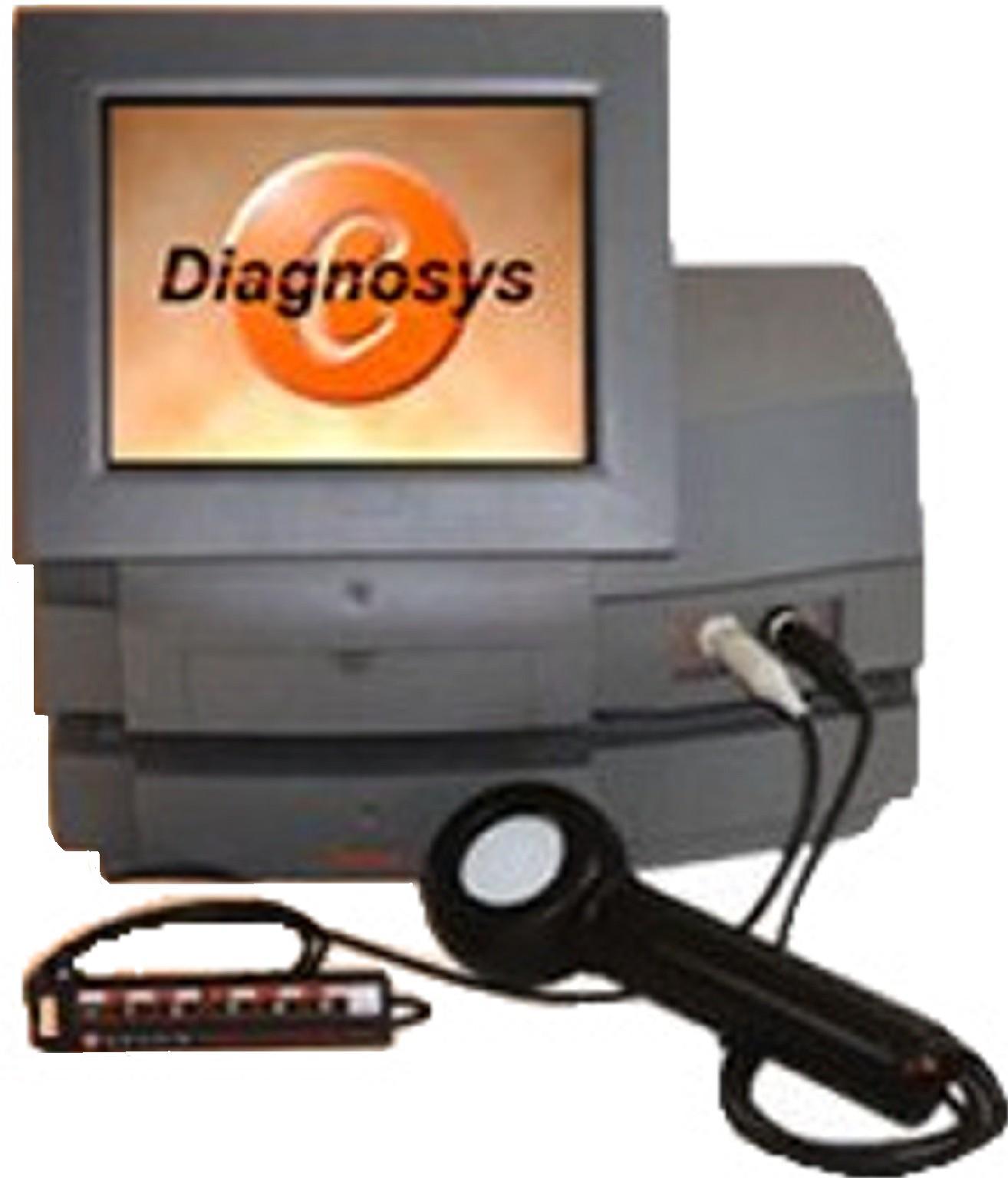

When Diagnosys decided to design a new Electrophysiology instrument they analyzed the current market and came up with a product that meets all the current and hopefully future requirements for electrophysiology testing which they incorporated into the ESPION system.

This system is designed to be small, portable, accurate, easy to use, expandable and incorporates many suggestions and features from leading clinical and research faculties in the UK and the USA.

Incorporating features for both standard ISCEV tests and new research, the ESPION system should be your number one choice in visual testing.

Product Categories

System Information

Minimum System Espion Console, PowerBloc, one stimulator. System includes headbox, software, manual, starter pack of electrodes and all cables Warranty All products are supplied with a 1 year return to base warranty. Repairs may be carried out either at customer’s premises or at a Diagnosys designated site at the discretion of Diagnosys. Extended Warranty An extended warranty agreement can be purchased which will increase the warranty period for up to a further 3 years (making 4 in total) for 5% of the initial cost per year of warranty. This warranty includes wear and tear of equipment Delivery Times Delivery is normally 60-90 days depending on components ordered. There is a current backlog on the ColorDome Desktop Ganzfeld, and deliveries should be back to normal by March 2003. Shipping Shipping is normally handled by Fed-Ex (depending on location) and charged at cost price to the customer Service Contracts Service contracts may be purchased for all products, subject to negotiation Support Technical support is provided free of charge from either the USA or UK offices Manufacture All products are built in the USA Quality Diagnosys LLC is ISO9001 certified Tax and Duties All import taxes and duties are the responsibility of the purchaser Software Updates Minor software upgrades/bug fixes are provided free of charge and may be downloaded from this web-site. Major upgrades may require an upgrade fee. Training Training can be provided for both how to run the equipment and how to intepret clinical ERG, VEP tests at either the customer’s site or at a training centre in Ottowa, Canada

Safety Conformation

All Diagnosys equipment runs at both 110V/240V, 50/60Hz (except the PowerBloc which must be specified at time of purchase) and conforms as appropriately to the following safety standards:

• CE₀₄₁₃
• MDD designated part 2A device
• EN60601-1:1990,A2:1996
• EN60601-1-1
• EN60601-1-2
• EN60601-2-26:1994
• UL2601 2nd edition:1997
• CAN/CSA C22.2 no. 601.1-M90,S1:1995

Choosing a stimulator

The choice of stimulator will control which type of ISCEV test you will be able to perform, although the supplied software will support them all (dark adaptometry not yet available):

ERG ColorDome, ColorBurst Focal ERG Maculoscope PERG Pattern Stimulator FVEP ColorDome, ColorBurst VEP Pattern Stimulator EOG ColorDome Dark Adaptometry ColorDome
